IndoorLCD
Indoor wall mounted series utilizes top commercial grade LCD screen technology, 2k/4k HD picture quality, high brightness and high contrast, perfect for displaying in bright locations. Stylish exterior design, naturally blends in with the environment. Supporting Android, Windows or Linux operating system, there are 5 different sizes available to meet your signage needs, they can be widely used in indoor public places, hotels and restaurants, finance, education, healthcare, entertainment and other places etc.
Main features of wall mounted digital signage advertising display：
Outdoor high brightness display technology.
Support optional infrared touch, capacitive touch, printer, NFC, camera, POE, etc. to meet the various needs of the market.
Support 7*24 hours long time playback
Compatible with mainstream audio, video and image formatsFHD, 4K UHD resolution optional, LED light source technology, low power consumption
32”/43”/49”/55”/65”optional
The metal casing is with good heat dissipation and surface is protected by super tempered explosion-proof glass
Supports vertical or horizontal mounting.
Product Features
300-700nits
high brightness optional
Landscape / Portrait Orientation
Touch
PCAP touch/ Infrared touch Optional
24 / 7
Working Time

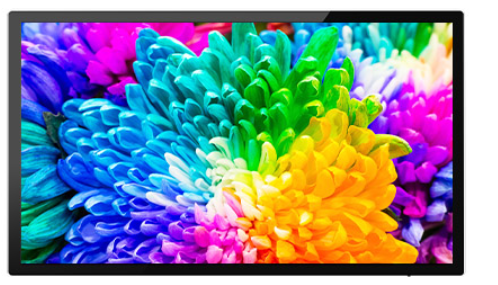

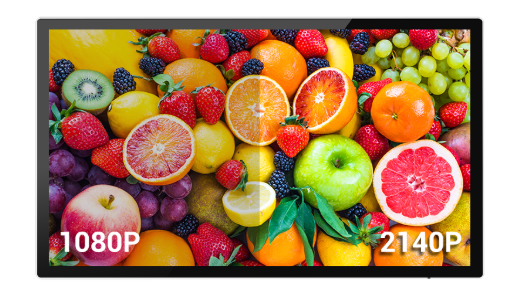

Perfect Display Effect
1080P/2140p commercial screen with high definition, clear picture quality, gorgeous color, perfect visual experience. Also
support auto loop playback.
Fashionable Desiged
QUOVIN Indoor digital billboard with high-bright aluminum frame design makes the product look more fashionable.

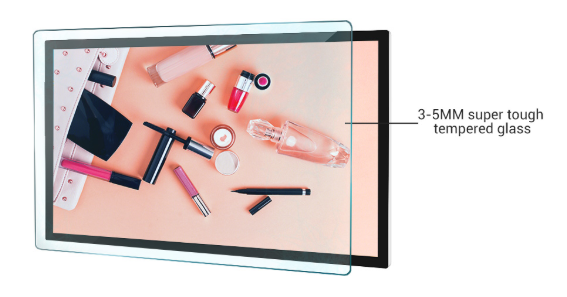

Super Tough Tempered Glass
With 3MM super tough tempered glass to protect the screen, prevent external damage, and prolong the screen life.

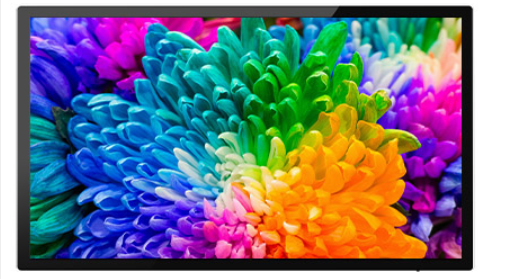

High Brightness
300-700 nits high brightness optional
300 nits
700 nits

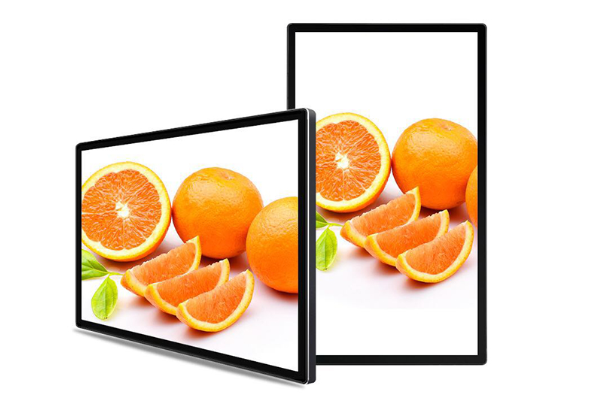

Support Horizontal /Vertical Orentation
Support horizontal and vertical orentation, high adaptability, according to their own space to choose display mode.
| Model | IDW Series | |||||
| LCD Panel | Screen Diagonal | 32 inch | 43 inch | 49 inch | 55inch | 65inch |
| Resolution (H x V) | 1920×1080 | 1920×1080/3840*2160 | 1920×1080/3840*2160 | 3840×2160 | 3840×2160 | |
| Contrast(Typical) | 3000:1 | 1200:1 | 3000:1 | 4000:1 | 4000:1 | |
| Brightness(Typical) | 300-700d/m2 | 300-700d/m22 | 300-700d/m2 | 300-700d/m2 | 300-700d/m2 | |
| Display Color | 8 bits, 16.7M | 8 bits, 16.7M | 8 bits, 16.7M | 8 bits, 16.7M | 8 bits, 16.7M | |
| Response Time(Typical) | 6.5ms | 8ms | 6.5ms | 8ms | 8ms | |
| View Angles LR,UD(CR>10) | 178°/178° | 178°/178° | 178°/178° | 178°/178° | 178°/178° | |
| Backlight rated hours | ≥50000hours | ≥50000hours | ≥50000hours | ≥50000hours | ≥50000hours | |
| System | Android 7.1 | |||||
| Configuration | CPU | ARM Cortex A17 Quad- Core | ||||
| GPU | Mali T764 Quad-Core | |||||
| RAM | 2G DDR | |||||
| ROM | 8GB FLASH | |||||
| LAN | 10/100M | |||||
| Support | microSD/TF card 32GB | |||||
| WIFI | WIFI802.11b/g/n | |||||
| 1 | 1 X HDMI out 1 X HDMI in | |||||
| 2 | 1 X Wifi | |||||
| 3 | 1 X RJ45 | |||||
| 4 | 1 X SD/TF card slot | |||||
| Support | Video | AVI, rm, rmvb, MKV, WMV, MOV, MP4, DAT, VOB, PMP, MPEG, MPG, FLV, ASF, TS, TP, 3GP, MPG | ||||
| music | MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV | |||||
| photo | JPG、JPEG、BMP、PNG、GIF | |||||
| AC Power Range | 100V-240V ,50/60HZ | |||||
| Feature | On Screen Display | English etc. | ||||
| Power On when plugged in | Yes | |||||
| Cabinet | Material | SPCC | ||||
| Color | Black | |||||
| Safety glass | NA | |||||
| Product Dimensions | 739.98*46*434.43 mm | 983.18*48*571.42 mm | 1115.78*46*646 mm | 1251.6*48*722.4 mm | 1470.48*50*845.52 mm | |
| Packing Dimention | 820*140*555 cm | 1063*140*691 cm | 1195*140*765 cm | 1331*140*842 cm | 1545*140*960 cm | |
| Net.Weight | 11.9kg | 17.7kg | 20.6kg | 28.6kg | 38.5kg | |
| Gross.Weight | 12.9kg | 19.7kg | 23.1kg | 31.6kg | 42.5kg | |
| Accessory | Built-in Speaker | 2*10W | ||||
| Power Cable | 1.5 meters | |||||
| Wall-mounted bracket | Included | |||||
