IndoorLCD

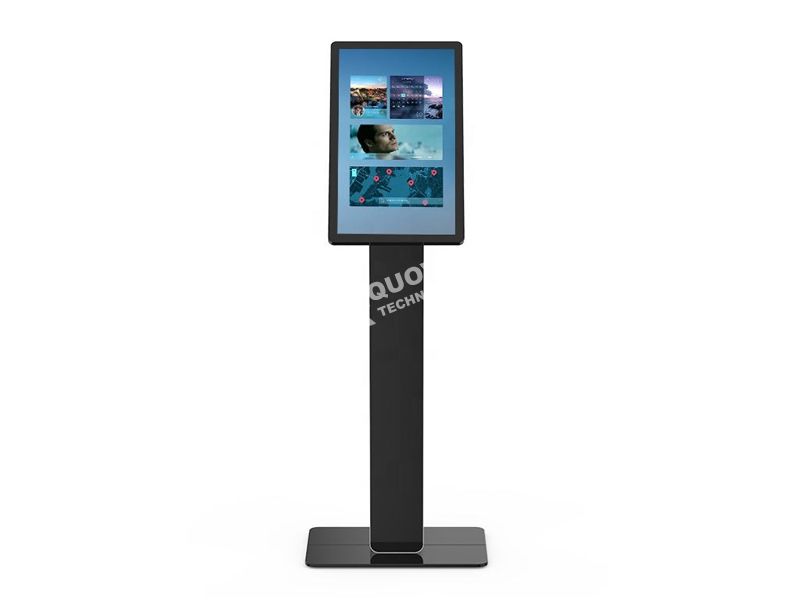

This kiosk is specially designed for information inquiring in indoor conditions.
10 point capacitive touch
Window and Android system optional
Unique Z/K/)( shape
High tempered glass provide protection

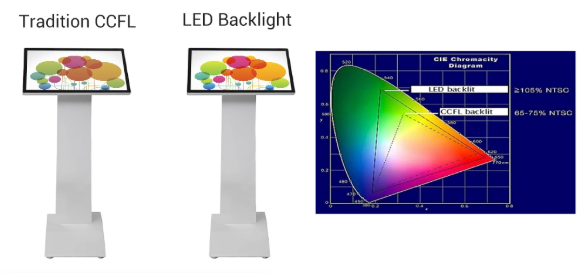

LED Backlight
LED Backlight, wide color gamut, the screen displays has rich colors, and the display picture is more clearer.
10 Point Capacitive Touch
10 point capacitive touch with above 50000 hours backlight rated hours
High Tempered Glass
Full HD 1920 x 1080 LCD panel with LED backlight, and with high tempered glass provide protection.
Wide Viewing Angle Display
350cd/m2 brightness with wide viewing angle display
Large ROM and with HDMI Output
Large ROM and with HDMI output and support DC 12V or AC power

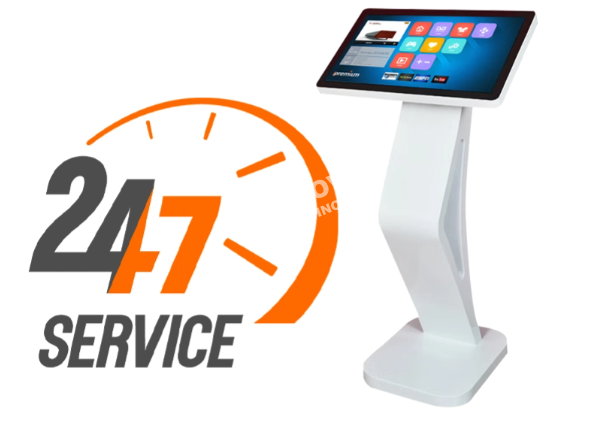

Industrial-grade Application Configuration
Support 7*24 hours of uninterrupted work, support timer switch, professional quality
Android and Windows System Optional
Android and windows system is optional, built-in a variety of APP.

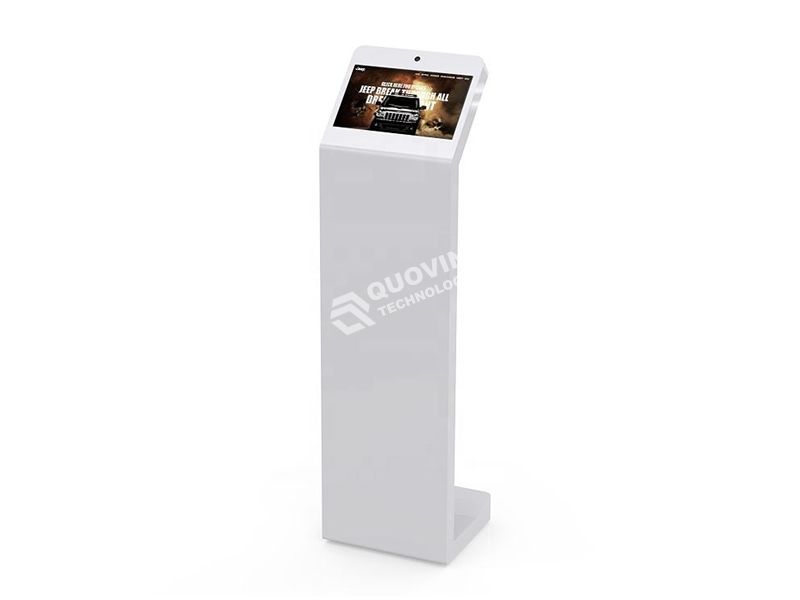

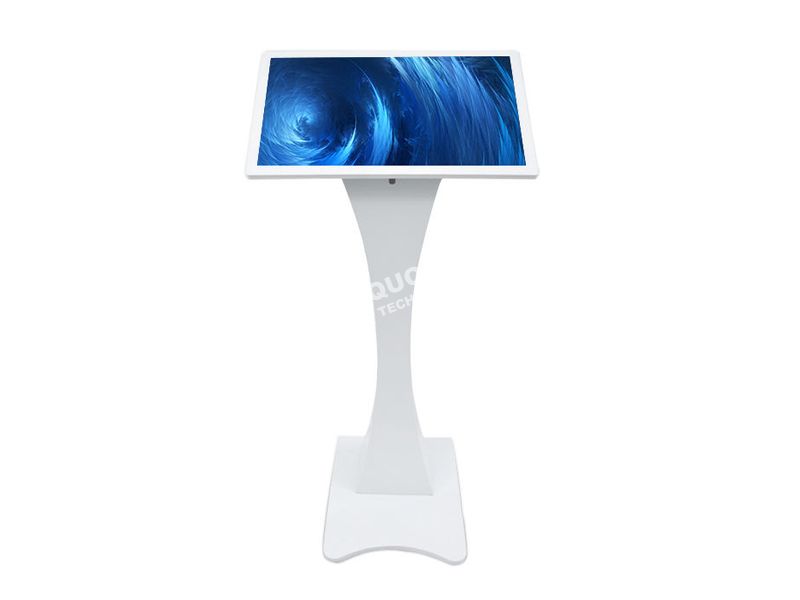

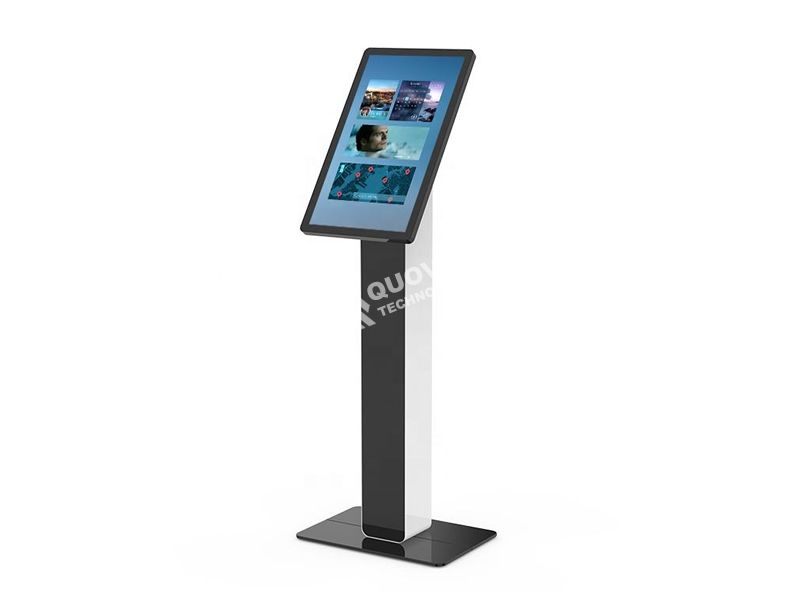

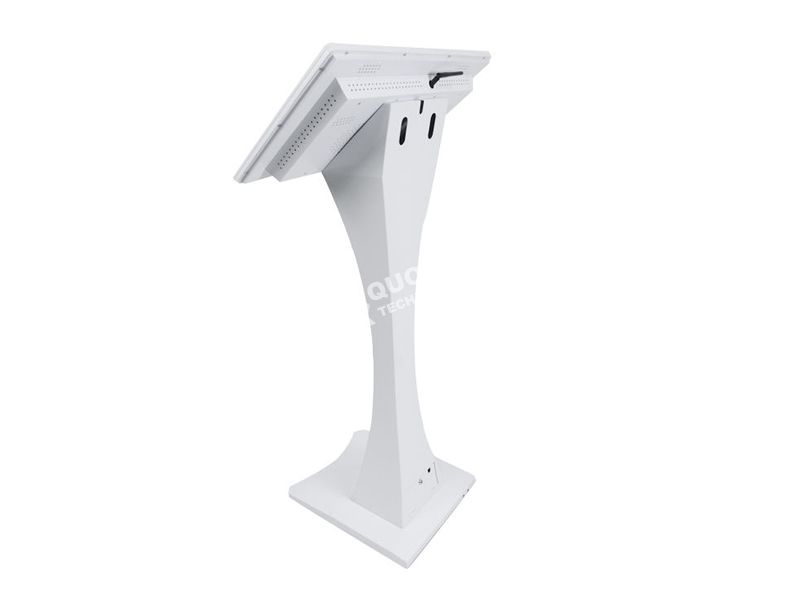

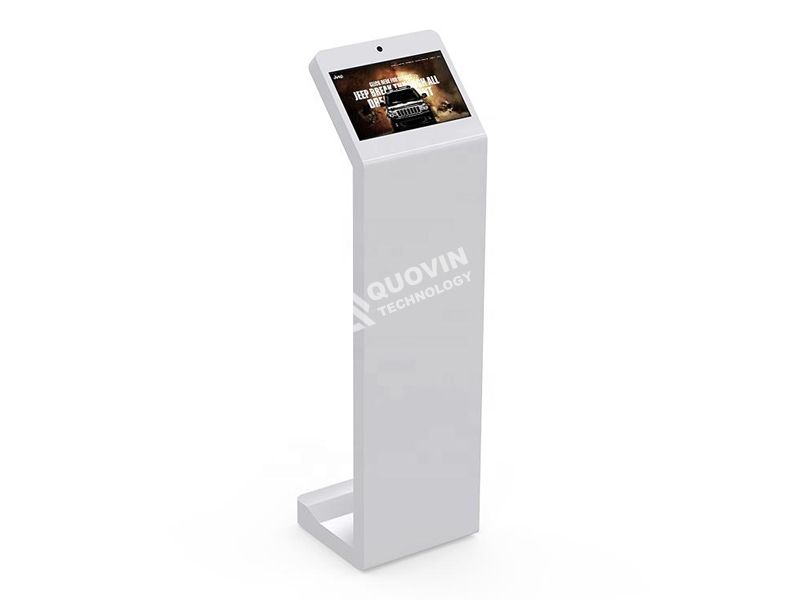

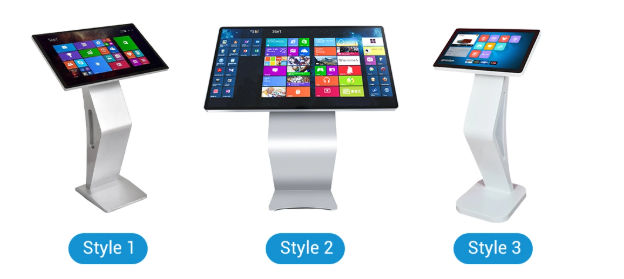

Various Appearance Options
Fashionable Aluminum alloy frame design and unique Z/K/)( shape base make it with a beautiful digital signage.
| Cabinet | Material | Aluminium Profile + Iron |
| Color | Black/Sliver/Customized | |
| Safety glass | YES, 3~5mm tempered glass for protection | |
| Installation | Floor stand | |
| Dimensions | 527.5*319*50mm | |
| LCD Panel | Screen Diagonal | 22inch |
| Resolution (H x V) | 1920×1080 | |
| Panel size | 476mm(H)X268mm(V) | |
| Contrast(Typical) | 1000:1 | |
| Brightness(Typical) | 350cd/m2 | |
| Display Color | 16.7M(8bit) | |
| Response Time(Typical) | 6.5ms | |
| View Angles LR,UD(CR>10) | 178°/178° | |
| Backlight rated hours | ≥50000hours | |
| Touch Solution | 10 point PCAP G+G capacitive | |
| Configuration | CPU | RK3568 Quad Core 2.0GHz |
| RAM | 2GB | |
| ROM | 16G | |
| OS | Android 11.0 | |
| Bluetooth | 4.2 | |
| WIFI | 802.11 b/g/n | |
| Interface | 1 | DC12V |
| 2 | 2xUSB | |
| 3 | RJ45 | |
| 4 | Earphone | |
| 5 | HDMI | |
| 6 | 2xLVDS | |
| Support | Video | mp4、mkv、wmv、mov、flv, etc |
| music | MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV | |
| photo | BMP、JPEG、 PNG、GIF, etc | |
| Power | AC Power Range | 100V-240V <28W |
| Operating Condition | Working Temperature | 0~50℃ |
| Working Humidity | 10~90% RH | |
| Feature | On Screen Display | English, etc. |
| LAN | Support 10/100/1000M adaptive Ethernet | |
| Built-in MINI PCI-E | Support 3G/4G Internet | |
